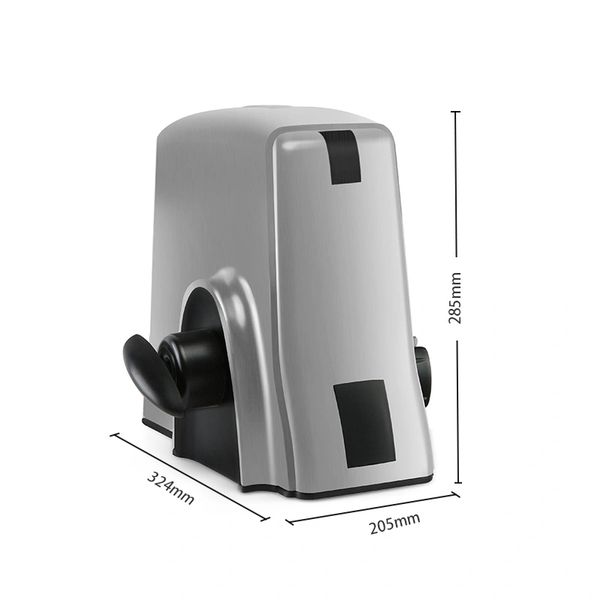

AETS DC BX600 Sliding Gate Motor | 800kg Sliding Gate Motor
Smart • Powerful • Reliable Sliding Gate Automation
The AETS DC BX600 Sliding Gate Motor is a high-performance DC sliding gate automation system designed for residential villas, compounds, and light-commercial entrances.
Engineered for smooth operation, enhanced safety, and long service life, BX600 is ideal for sliding gates weighing up to 600kg.
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:800,cg:true)
Key Features
DC Motor Technology – Smooth, silent & energy-efficient operation
Gate Capacity – Suitable for sliding gates up to 600 kg
Soft Start & Soft Stop – Protects gate structure and motor

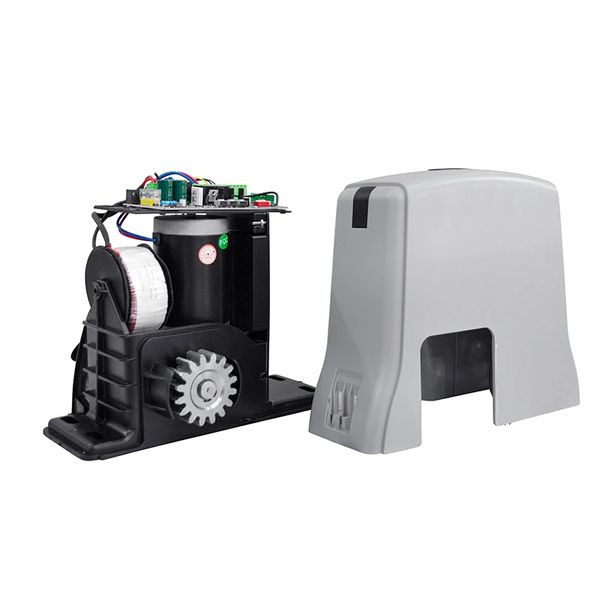

Built-in Control Board – Easy programming & diagnostics
Obstacle Detection – Auto-reverse on obstruction
Manual Release System – Emergency operation during power failure
Photocell & Safety Edge Ready
Remote Control & Access Control Compatible
Safety & Smart Control
The AETS DC BX600 sliding gate motor is designed with advanced safety logic, ensuring reliable access control without compromising user safety:
- Photocell integration for vehicle & pedestrian safety
- Intelligent force control to prevent accidents
- Smooth braking for long gate life
- Compatible with ANPR, UHF, GSM & keypad systems
ACCESSORIES
Nylon with Steel Core
- Model: HNR-600-SC
- Material: Nylon exterior + internal steel core
- Length: 1 m
- Advantage: Low noise + high strength
Steel-Core Rack
- Model: SCR-600-ZP
- Material: Hardened steel with zinc plating
- Module: M4 standard rack module
- Length: 1 m per section
- Feature: Positive engagement with pinion gear for smooth drive
Safety Photocell
- Model: AETS-PSC600
- Type: Infrared photocell safety sensor set
- Operating Range: Up to 15 m (adjustable)
- Beam Type: Dual-beam for false-trigger prevention
- Protection Rating: IP55 weatherproof for outdoor use
- Supply Voltage: 12–24 V DC (compatible with AETS DC systems)
- Mounting: Wall or post mount with adjustable brackets
Motor Accessories
Two remotes, magnetic limit switches, and fixed bolt accessories:
Flashing Light
Model: AETS-FL24
- Voltage: 24 V DC (perfect match for AETS DC systems)
- Light Type: High-intensity LED flashing beacon
- Flash Pattern: Continuous warning flash during gate motion
- Mounting: Bolt or bracket mount for posts, posts, or gate pillars
- Protection Rating: IP65 – Weatherproof for outdoor use
- Power Consumption: Low current (suitable for battery-backed systems)
- Lens: Durable polycarbonate for high visibility
Smart Receiver + Mobile App Control
Model: AETS-SR600
Category: Smart Gate Controller & Connectivity Module
Compatibility: AETS DC BX600 and most 24 V DC gate operators.
The SR600 Smart Receiver enables mobile app control of your sliding gate — so you can open/close, check gate status, and monitor activity directly from your smartphone. It integrates with the BX600 control board and connects via Wi-Fi for fast, secure communication.
