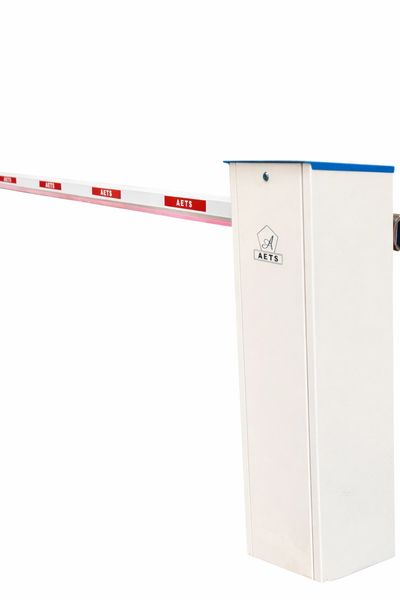

dc prime 30 barrier
The AETS DC Prime-30 is a next-generation automatic barrier system designed for high-traffic environments.
Equipped with a BLDC motor tested for 3,000,000 cycles, it offers silent operation, long service life, and maximum reliability for UAE climatic conditions.
Ideal for:
✔ Residential Compounds
✔ Commercial Buildings
✔ Industrial Facilities
✔ Parking Management Systems
✔ Government & Free Zone Projects.
Technical Specifications
Feature &Specification
Motor Type: BLDC Motor
Motor Life:3 Million Cycles
Opening Time: 1.8-3 seconds(adjustable)
Duty Cycle: 100% Continuous operation
Operating Temperature: –45°C to +65°C
Boom ARM: 3M, 4M, 6M
Lighting: Integrated Red & Green LED Strip for high visibility
Reflective: Stickers Included
Operating: Voltage 24V DC
Input Voltage: 220-240V AC, 50/60 Hz
Control Board :AETS High-Performance MCU
Protection: Over-current, Over-heat, Surge protection
Manual Release: Available during power failure
Connectivity: Push button, Remote control, Access control integration
Safety & Sensors
Feature & Specification
Photocell Support : Yes
Loop Detector : Single & dual channel support
Obstacle Detection: Auto-reverse safety function
Soft Start / Stop Included
Housing Cabinet
Material: Heavy-duty steel cabinet
Coating: Powder-coated (RAL 9010 + Blue top optional)
IP Rating: IP54 (outdoor rated).
